High temperature felt roller sleeve on handling table for conveying

Felt roller sleeve
Compared with graphite plate, which is a traditional material, the heat-resistant felt roll is soft, pure, and has excellent wear resistance. It solves the problem that graphite easily scratches and leaves marks on aluminum profiles.


Product Detail

Product Tags

Product Description

100% pure fiber:
There are no hidden impurities in the conveyor felt rollers. At the same time, we have advanced testing equipment to ensure that no broken needles remain. Therefore, it will not leave any stains and dents on aluminum profiles.

The Felt surface is smooth:
felt rolls have a smooth surface and no weave pattern due to the proven needling technology. It has a very good protective effect on aluminum profiles and will not scratch them.

high strength:
The Premium felt tube has a high-density thick fiber layer. PBO felt rolls can not only be made of pure PBO fibers but also cost savings with PBO + Kevlar. We can also customize the thickness of the fiber layer.

Resin hardening:
For improved abrasion resistance and durability, felt rolls can be fully or semi-resined. Improve abrasion resistance and durability. It also prevents aluminum shavings or dust from sticking to the felt. And reduce the damage to the profile surface.

Specifications

Material

model

type

Color

Temperature

Density

Technique

Thickness

(mm)

3+7PBO/Kevlar

ZL-R-KP

Felt Roller

Brown

600

430g/m²·mm

Needle  Punch

60-120

Kevlar

ZL-R-K

Yellow

480

430g/m²·mm

80-120

Nomex

ZL-R-N

Off-whte

280

430g/m²·mm

60-120

polyester

ZL-R-P

Flat Strip

White

180

430g/m²·mm

80-100

Application

PBO Seamless Felt Roller is initial Table before Interrupt saw and Forepart of Run-out Table after Interrupt saw in aluminum handling system, the PBO Tube used at the outlet or slide-out table in aluminum profile extrusion.  Felt Roller for aluminum extrusion.

Kevlar Seamless Felt Roller is used for the first and second handling table of the extrusion production line after the last five cut-off saws are slid out. The first five items suggest using PBO rollers. Generally, the number of Kevlar roller covers is between 50-80. in aluminum profile extrusion.

Nomex Seamless Felt Roller is only used in the saw gauge table for aluminum handling table. Can be used instead of the Polyester roller covers position.

Product Dispaly

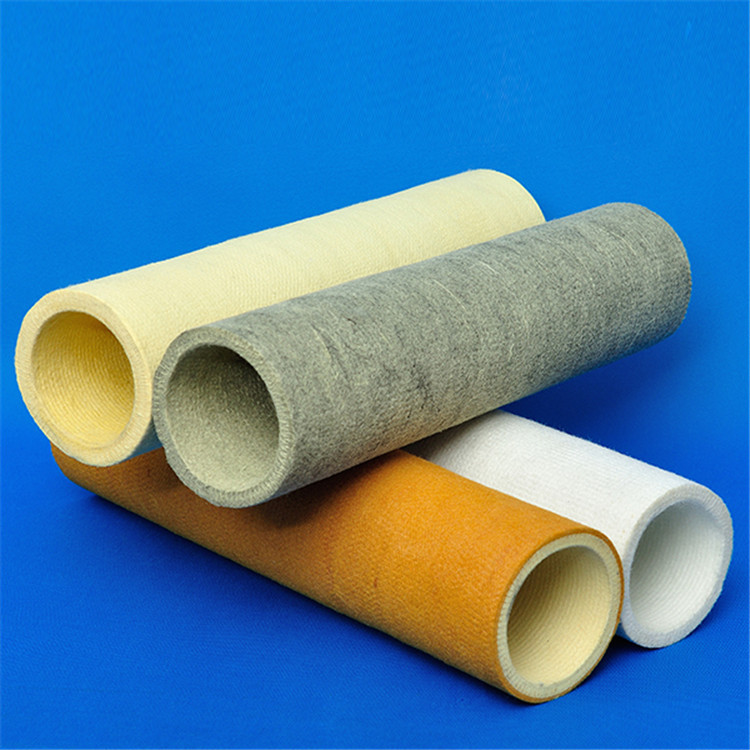

High temperature roller sleeve1
High temperature roller sleeve2
