Aluminum Extrusion Faster Induction Electricity Heating Die Furnace

Technical parameter
1. Dimensions: 1500×2200×1800 (length×width×height). (According to the actual situation)
2. Mould capacity: 2 to 8 sets are placed at a time, and the mould size is Φ120~Φ600.
3. Rated temperature: the room temperature of the furnace is 450~520℃.
4. The maximum heating temperature of the mold: 550℃.
5. Fan power: 1.1kw ~ 1.5kw.
6. Power consumption: 80~120kwh/12 hours
7. Temperature difference between furnace and mold: ≤±5℃.
8. Furnace door mode: drawer type, well type.
9. Heating time: 1 to 1.5 hours.


Product Detail

Product Tags

Main Feature

1. Protect the mold: uniform and moderate heating, avoiding the problems of mold cracking and oxidation caused by rapid heating, and greatly improving the service life of the mold;

2. Infrared electric heating, using high-efficiency infrared thermal radiation technology, can achieve the highest heat utilization rate.

3. Energy saving, mold heating speed is fast and temperature is uniform, mold working belt is not easy to oxidize, etc. Improve work efficiency, reduce mold breakage and bridge damage, and improve aluminum surface quality and yield.

4. Safe, fast and comfortable operation;

5. High efficiency: multiple sets of molds can be heated at one time.

Details

Aluminium Extrusion Die Heating Furnace is induction type,fast heating, details parameters:

1, heating time: 25~35min

2, heating method: electromagnetic

3, maximum die diameter:350mm

4, heating feature: only heat dies, do not heat die holders

5, PLC control, display screen& button operation

6, alarm protect dies

7, temperature record

Normally one set of extrusion press line will have three drawers for one die heater furnace, each drawer of die oven work independently, some customer also choose two drawers for one extrusion press. One drawer die heater furnace is good at die trying when start production,because it is fast heater,use electricity induction heating, heat up time only need 20~35 minutes, the exact  heating time depend on extrusion dies size , let us know your die diameter and height, supply to you details parameters by email.

Details

Place of Origin: Foshan, Guangdong, China
Condition: New
Type: Induction Furnace
Usage: Heat Treatment Furnace
Voltage: 3 Phase 380V(customized)
Dimension(L*W*H): 2200*1500*1800
Power (kW): 12
Warranty: 1 Year
Applicable Industries: Manufacturing Plant
After-sales Service Provided: Field installation, commissioning and training, Field maintenance and repair service

Weight: 5500kg, 550kg
Certification: ce
Name: Die Heating Furnace
Color: Blue&Gray
Capacity: 25~30min heating
Feature: Energy-saving
Use: Heating extrusion dies
Each heating chamber: for one die only
One press: one die oven with three chambers
Maximum die diameter: 350mm
Product Name: extrusion die

Supply Ability

Supply Ability: 2000 Set/Sets per Year

Packaging & Delivery

Packaging Details: Standard
Port: Shenzhen/Foshan/Guangzhou

Quantity(sets)

1 - 1

>1

Est. Time(days)

7

To be negotiated

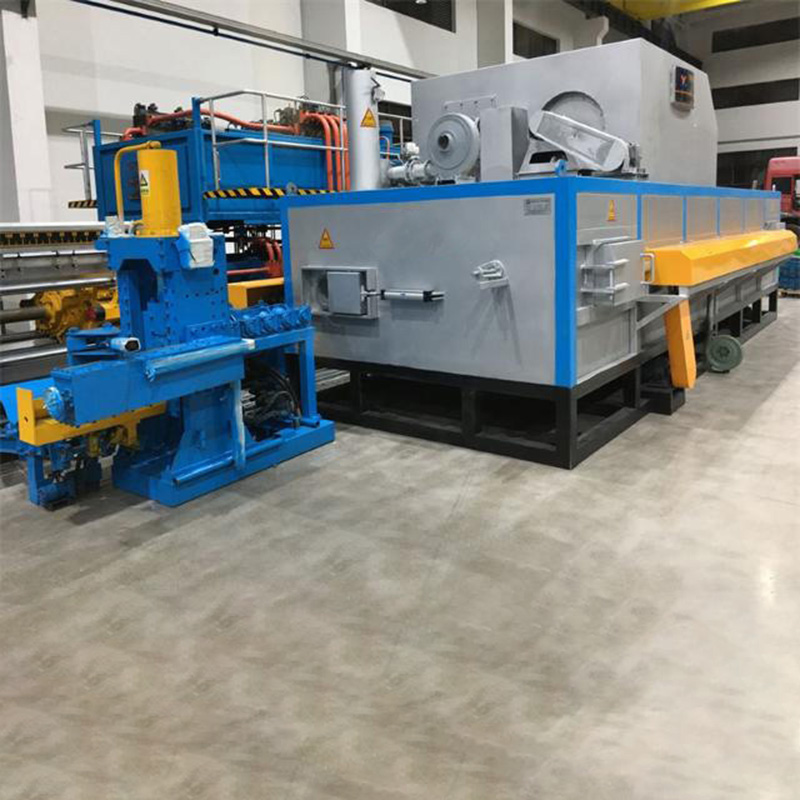

Product Dispaly
