Aluminium Profile Extrusion Single/Double/Triple Puller On Handling Table

Operation method: the console can be started with a few simple buttons, cooperate with human-computer interface to set the cutting mode( the length setting), hit the automatic under the manual states, no need for AB car reset, the reset process is fully automatically to reduce manual errors. Cutting length and the total length of a bar can be displayed on the touch screen in actual time,in addition, this puller also can be used independently interruption saw, the cost can be greatly reduced(traction head electricity consumption), the interrupted saw with sickle clip fits all profiles that do not require a puller.


Product Detail

Product Tags

Main Features

Control system: control system adopts Siemens PLC for logic control, AB car and main cabinet are equipped with a CPU( total have 3 CPU)for logic control, 3 CPU exchange data through wireless communication, the status and fault display of two traction heads can be monitored to the touch screen at anytime. The traction head drive system has a variety of options: a is the Mitsubishi A840 vector frequency converter drives the frequency converter to drive the puller; b is Bosch rexroth VF5610 international version vector frequency converter drive frequency conversion motor drive puller:c is adopts Siemens V90 series servo driver to drive Siemens servo motor to drive puller Three schemes have advantages and disadvantages, use frequency converter cost lower, simple operation and maintenance and the torque control precision is not as good as the servo controller. The cost of using servo drives is high, and need the professional technicians for operation and maintenance. Later maintenance costs more, the order period is longer so affecting production.

Compared with the Mitsubishi converter and Bosch rexroth converter, the Bosch low speed torque is better, especially when the traction speed in the low status, still can be operation stable, unlike Mitsubishi frequency converter low speed without encoder will shake, the profile will appear wavy ripple.

Technical Parameters

Matched extrusion press capacity

600~5000 T

Matched cooling table height

820mm (roller upper surface to ground)

Matched run out table external width

≤510mm (roller width 400mm)

Matched lead out table length

14-16 meters(excluding quenching length)

Pulling (cooling table)length

26~38 meters

Maximum profile cross section

W250mm x H160mm

Synchronous pulling force

0~100 kg

Synchronous pulling speed

0~60m/min

Fast return speed

0~260m/min

Sawing dscard length

≈300mm

Sawing linear speed

≈2000m/min (samll saw blade stress, longer use life, smoother profile cut surface)

Sawing advance speed

≤350mm/s 3 options for variable profile thickness

Compessed air

5~8kg/cm2, ≈0.3m3/h

Pulling motor power

7.5kw x 2

Vehicle hydraulic system power

1.5kw x 2

Hot saw motor power

2.2 kw

Saw electric lubrication spraying power

0.09kw

Control system

OMRON

Total weight

≈15 Ton

Dimension

53 m x 1.4 m x 1.8m

Product Dispaly

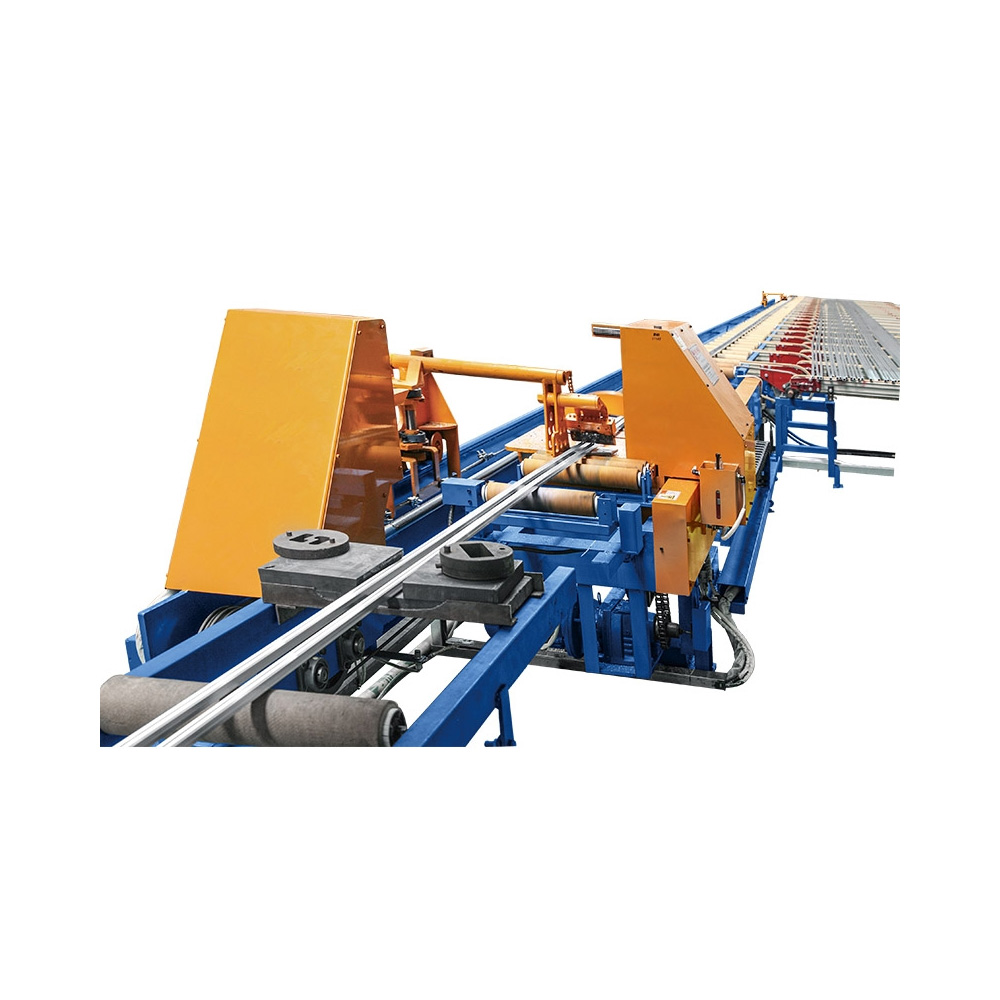

aluminum extrusion puller
